2018 - 2023 Jeep Wrangler 4 door (JL Body) Katzkin Roll Bar Cover
WILL NOT FIT MODELS WITH POWER TOPS
Over time your Jeep Wrangler roll bar covers can really take a beating from the sun and stains make the inside of your Jeep look worn. Upgrade and renew your Jeep's interior by matching your Katzkin leather seats with Katzkin's matching color vinyl roll bar covers. The same brilliant Katzkin colors in a completely custom fitting Jeep Wrangler roll bar cover that will give your vehicle an amazing one-of-a-kind look!
About Katzkin Leather Kits at AutoSeatSkins.com
The #1 Name in Custom Automotive Upholstery
Replacement leather seat upholstery, not seat covers - when it comes to after-market leather interiors, nothing beats the quality and style of Katzkin's ready to install auto upholstery. The leather used in creating Katzkin interiors is top quality, meeting the rigorous standards set by OEMs. Whether you have a cloth interior and you're looking to upgrade, or you want a custom upgrade like two-tone, embroideries, suedezkin, or exotics, Katzkin interiors are sure to impress even the most discriminating owner. Choose from Katzkin Designs, a Manufacturer Inspired Style, or let the experts at AutoSeatSkins.com help you create your own custom look!
We highly recommend ordering Katzkin Color Samples - choose from the more than 60 colors of standard leather, Suedezkin, Tuscany, Outlaw, Barracuda, and Exotics. The kit you are purchasing comes with the leather upholstery for all seats in the vehicle with matching material for headrests, door panels, and arm rests where applicable. AutoSeatSkins.com does not sell leather by the seat or by the row. We do sell the material by the yard for your custom projects. All installation tools are also sold separately.
With over 30 years in leather seat upholstery experience, AutoSeatSkins.com is your source for Katzkin Leather!
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Features
Roll Bar Cover Installation Info
REMOVE TOP AS PER FACTORY INSTRUCTIONS, FOR BOTH HARD TOP AND SOFT TOP MODELS.
• On Soft Top models, you must completely remove the top from the vehicle including the hard plastic door surrounds, not just lower the top. Note: this cover will not fit Jeep Wrangler models equipped with the “Sky One” power sliding hard top.
INSTALLATION
Begin at the back of the vehicle and work toward the front of the vehicle.
Install #1, Rear Center Bar cover. Ensure that the cover is aligned with the dome light opening.
Install #2, Rear Lower Driver Side cover. This will overlap the Rear Center Bar cover (SEE IMAGE BELOW, white arrows).
Install #3, Rear Lower Passenger Side cover. This will overlap the Rear Center Bar cover (SEE IMAGE BELOW, white arrows). Check alignment to the opening for the noise cancelling microphone.
Install #4, Driver Side Rear Upper (door cover). This will overlap the lower bar cover (SEE IMAGE BELOW, white arrows).
Install #5, Passenger Side Rear Upper (door cover). This will overlap the lower bar cover, all zippers facing up (SEE IMAGE BELOW, will overlap at white arrows when fully zipped).
Install #6, Driver Side Front Upper. Zipper facing the sky.
Install #7, Passenger Side Front Upper. Zipper facing the sky.
Starting from the rear of the vehicle, review each piece that has been installed, tucking zippers on each component. Also ensure that all zippers are facing toward the sky and appear to be centered. On Hard Top models, installation is complete. Replace top as per factory instruction.
ADDITIONAL SOFT TOP INSTRUCTIONS
In Soft Top models, there are 4 holes that need to be cut at each front door opening. This procedure must be done to re-attach the hard plastic door surrounds that were removed when the soft top was taken off.
This shows the factory hard plastic door surround with the top off, without the roll bar cover installed. Holes will need to be cut in the bottom and the top of the roll bar cover for these hard plastic retainer bolts. (shown circled in Red). We recommend a small “X” be cut, just for bolt access. The size of the hole only needs to be large enough to slip the bolt through and access with a Torx tool to tighten.

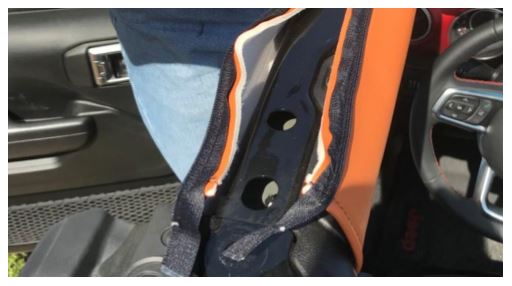

On the top (shown) and the bottom of the factory roll bar there is an opening for the bolt to feed through. After the cover is installed, utilize your thumb and starting nearest the front windshield, feel along the cover for the openings for the through bolt. It is in this area where you will need to cut the small “X”.
Finish installation and replace Soft Top.
|
|
|
|
|
|
|
Perfect Fit For My Wrangler
